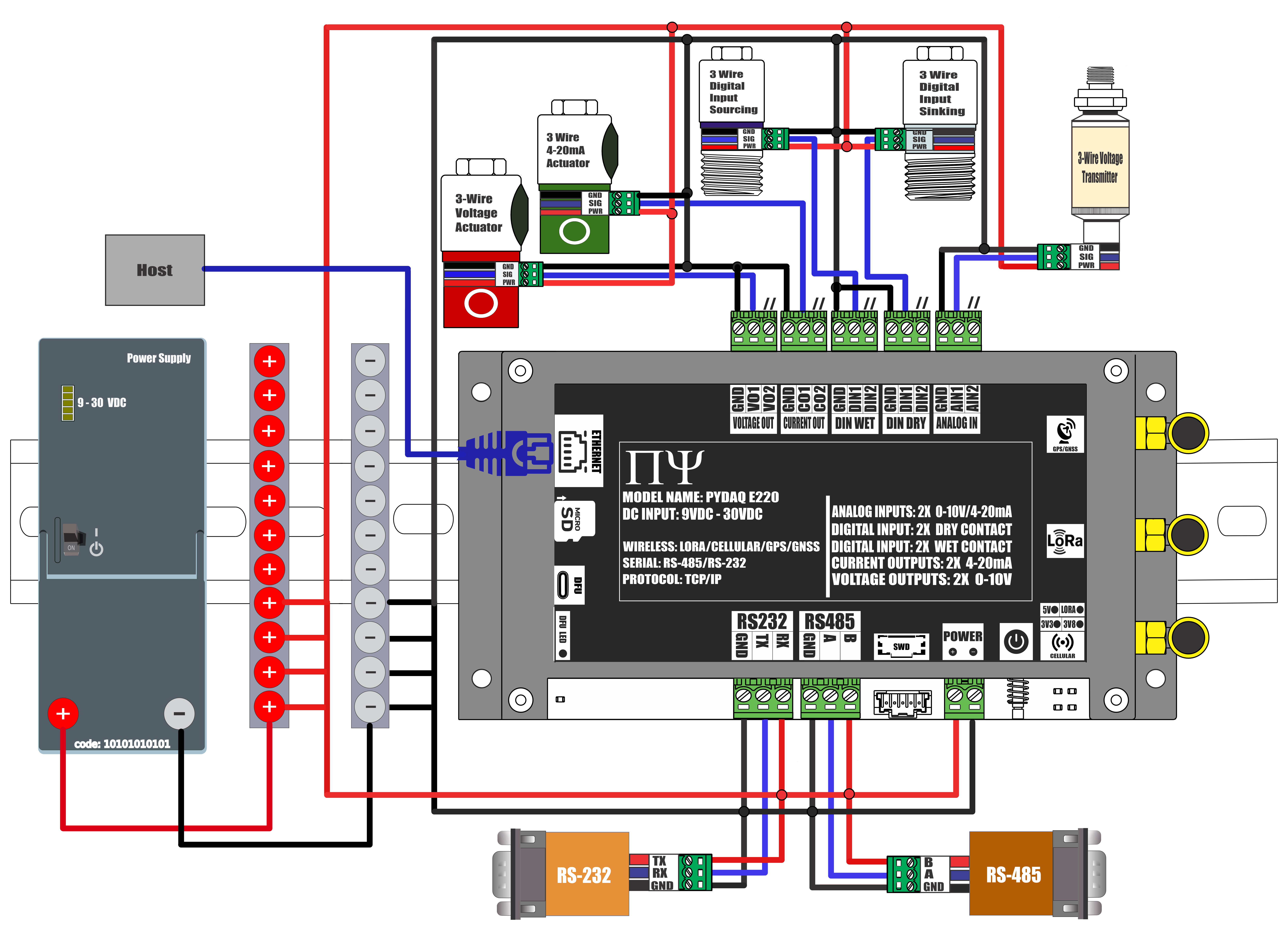

PYDAQ E220 is a Multichannel Wireless Programmable RTU. PYDAQ E220 is a low cost IoT gateway designed to interface to any Modbus RTU and Modbus TCP device using RS-232, RS-485 and Ethernet. PYDAQ E220 is also designed to interface to any sensor that supports 4-20mA current outputs or industry standard voltage outputs. In addition to monitoring sensors, PYDAQ E220 is designed to control any actuator that supports industry standard voltage inputs in the range of 0-10V and industry standard 4-20mA current inputs. In addition to monitoring analog sensors, PYDAQ E220 is designed to control any dry contact type digital sensor.
PYDAQ E220 is powered using PytroAI Edge Engine which allows for running multiple types of Industrial IoT Applications. PYDAQ E220 is made for secure collection, transport, and control of data in rugged industrial environments. Data is transported using both cellular communication and unlicensed 900MHz radio communication.
In addition to the ability of creating multiple applications using PytroAI Edge Engine, PYDAQ E220 has a powerful open-source Micropython development environment that allows developers to create complex custom applications to perform edge computing locally while providing the most optimal, resilient connectivity between radio network and cloud-based applications.
