Model: SKU# WT-PLC-V1 Plunger Lift Intelligent RTU
Category: WT-PLC-V1 Plunger Lift Intelligent RTU
WellTimer PLC is a wireless programmable Artificial Lift Plunger Controller that features rich communication and I/O interfaces designed for Algorithm optimization using a built-in Micropython© Edge Computing Engine
Price: $250.00
| Power | |
| Power Supply Voltage | 9-30V |
| Power Type | DC-in |
| Current Draw | 150mA@Typical 3A@Peak |
| Mechanical | |
| Dimensions | 152.05" L x 87.2" W x 1.6" H |
| Enclosure | ABS Plastic |
| IP Rating | IP 64 |
| Environment | |
| Operating Temperature | -40°C to 85°C |
| Operating Humidity | 5%-95% Relative Humidity, non-condensing |
| I/O Ports | |
| Analog Inputs | 4x Channel: 0-10V, 4-20mA |
| Digital Inputs | 1x Channel: Wet Contact Source |
| Current Outputs | 2x Channel: 4-20mA Current Output |
| Digital Outputs | 2x Channel: Sink |
| Wired Communication | |
| RS-232 | 1x Port: Modbus RTU Master/Slave |
| RS-485 | 2x Port: Modbus RTU Master/Slave |
| Ethernet | 1x Port: Modbus TCP Master/Slave |
| Wireless Communication | |
| Radio | 900MHz ISM Protocol: Star Topology |
| Cellular | LTE 4G Protocol: MQTT/HTTPS |
| Bluetooth | 2.4GHz ISM Protocol: BLE |
| Certification | |
| FCC, IC | |

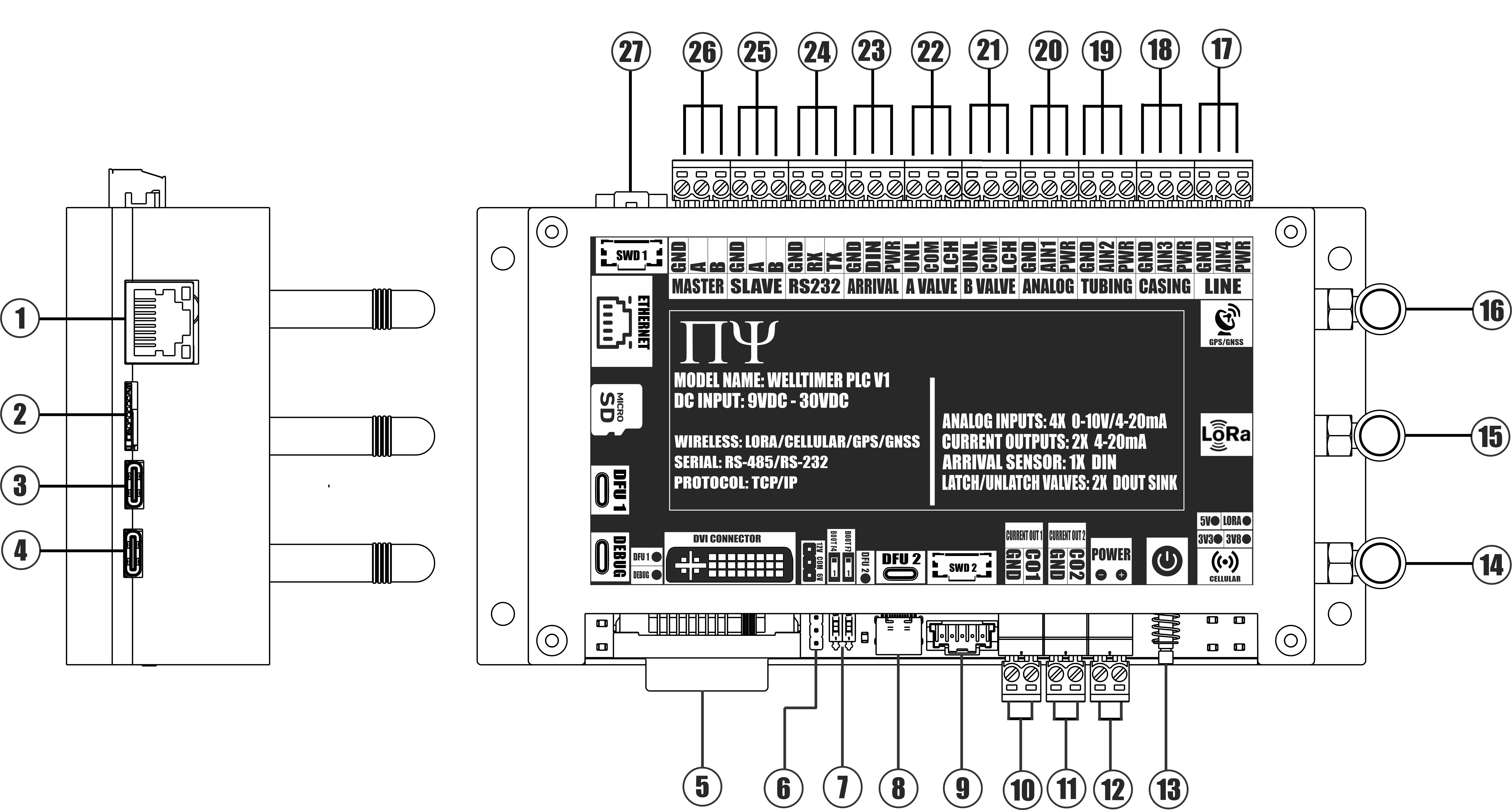

| 1 | Ethernet port |
| 2 | Micro SD card slot |
| 3 | Programming USB |
| 4 | USB DFU 1 |
| 5 | HMI DVI Connector |
| 6 | Digital Output Voltage Select |
| 7 | Boot Mode Select Switches |
| 8 | USB DFU 2 |
| 9 | SWD Connector 1 |
| 10 | Current Output Channel 1 |
| 11 | Current Output Channel 2 |
| 12 | Power Connector |
| 13 | Power Button |
| 14 | Cellular Antenna |
| 15 | LoRa Antenna |
| 16 | GPS Antenna |
| 17 | Line Pressure |
| 18 | Casing Pressure |
| 19 | Tubing Pressure |
| 20 | Analog Input |
| 21 | B Valve |
| 22 | A Valve |
| 23 | Arrival Sensor |
| 24 | RS 232 Port |
| 25 | RS 485 Slave |
| 26 | RS 485 Master |
| 27 | SWD Connector 2 |
| List of Documents | |
|---|---|
| Document | Software Configuration |
| WellTimer PLC V1 Operation Manual | WellTimer PLC V1 is configured using a browser based AI assisted tool called PytroAI. PytroAI is accessed by going to https://build.s2c.io The various application notes provide a detailed walkthrough for configuring the WellTimer PLC V1 . |
| WellTimer PLC V1 Software Manual | |
| WellTimer PLC V1 Point-2-Point Radio Bridge Application Note | |
| WellTimer PLC V1 Point-2-MultiPoint Radio Bridge Application Note | |
| WellTimer PLC V1 Tank Level Monitoring Application Note | |
| WellTimer PLC V1 Modbus RTU Master Application Note | |
| WellTimer PLC V1 Modbus RTU Slave Application Note | |
| WellTimer PLC V1 Modbus TCP Master Application Note | |
| WellTimer PLC V1 Modbus TCP Slave Application Note | |
