PYDAQ A200: Wireless Modbus Gateway

Model: PYDAQ A200: Wireless Modbus Gateway

Category: PYDAQ A200: Wireless Modbus Gateway

PYDAQ A200 is a Multi-Protocol Wireless Modbus TCP/RTU Gateway. PYDAQ A200 is a low cost IoT gateway designed to interface to any Modbus RTU and Modbus TCP device using RS-232, RS-485 and Ethernet. PYDAQ A200 is powered using PytroAI Edge Engine which allows for running multiple types of Industrial IoT Applications. PYDAQ A200 is made for secure collection, transport, and control of data in rugged industrial environments. Data is transported using both cellular communication and unlicensed 900MHz radio communication.

In addition to the ability of creating multiple applications using PytroAI Edge Engine, PYDAQ A200 has a powerful open-source Micropython development environment that allows developers to create complex custom applications to perform edge computing locally while providing the most optimal, resilient connectivity between radio network and cloud-based applications.

Specification

Price: $250.00

Specifications

Power
Power Supply Voltage9-30V
Power TypeDC-in
Current Draw150mA@Typical 3A@Peak
Mechanical
Dimensions152.05" L x 87.2" W x 1.6" H
EnclosureABS Plastic
IP RatingIP 64
Environment
Operating Temperature-40°C to 85°C
Operating Humidity5%-95% Relative Humidity, non-condensing
Wired Communication
RS-2321x Port: Modbus RTU Master/Slave
RS-4851x Port: Modbus RTU Master/Slave
Ethernet1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio900MHz ISM Protocol: Star Topology
CellularLTE 4G Protocol: MQTT/HTTPS
Bluetooth2.4GHz ISM Protocol: BLE
Certification
FCC, IC

Pinout Description

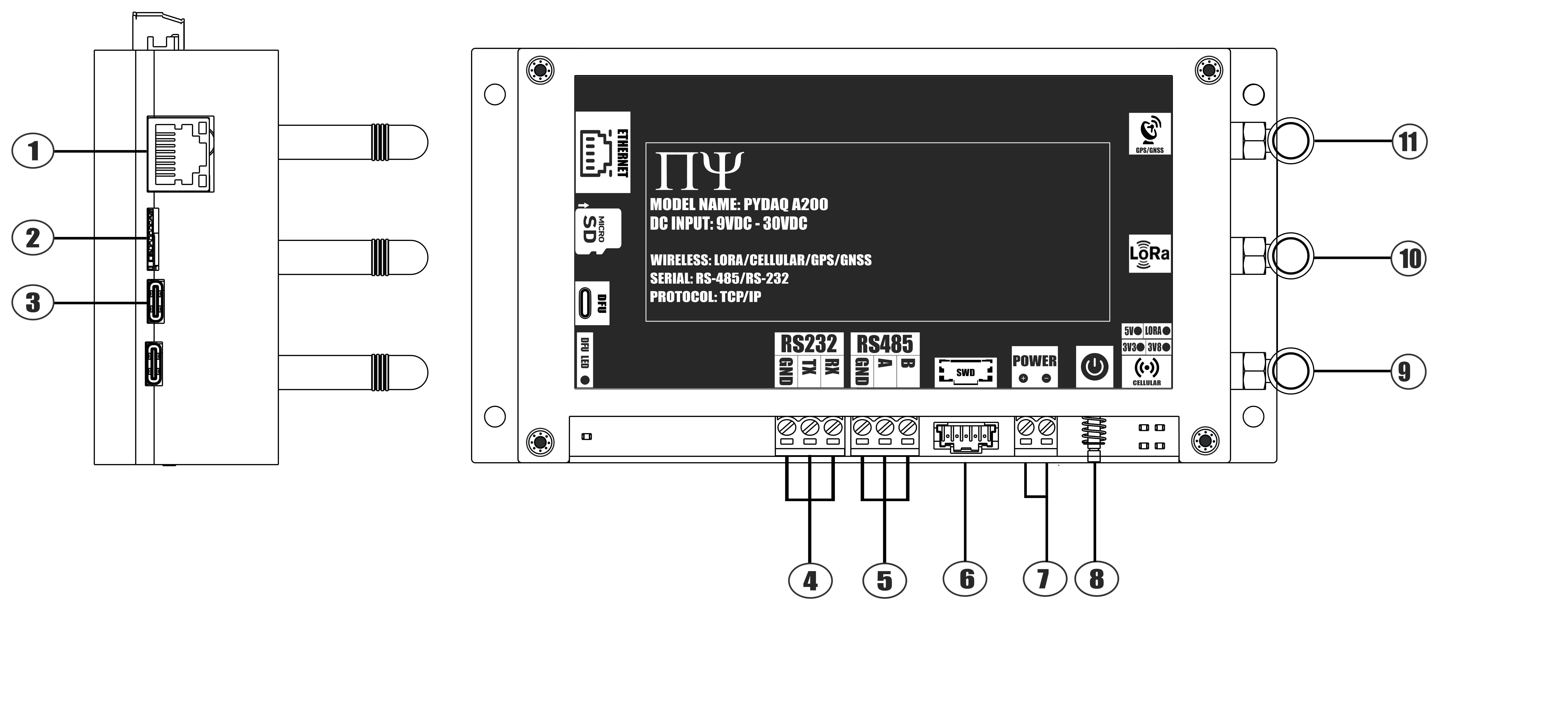

PYDAQ A200 PINOUT
1Ethernet port
2Micro SD card slot
3Programming USB
4RS 232 Port
5RS 485 Port
6SWD Connector
7Power Connector
8Power Button
9Cellular Antenna
10LoRa Antenna
11GPS Antenna

Wiring Diagram

PYDAQ A200 WIRING

Mechanical Diagram

DIMENSION

Software and Documentation

List of Documents
DocumentSoftware Configuration
PYDAQ A200 Operation ManualPYDAQ A200 is configured using a browser based AI assisted tool called PytroAI.
PytroAI is accessed by going to https://build.s2c.io The various application notes provide a detailed walkthrough for configuring the PYDAQ A200 .
PYDAQ A200 Software Manual
PYDAQ A200 Point-2-Point Radio Bridge Application Note
PYDAQ A200 Point-2-MultiPoint Radio Bridge Application Note
PYDAQ A200 Tank Level Monitoring Application Note
PYDAQ A200 Modbus RTU Master Application Note
PYDAQ A200 Modbus RTU Slave Application Note
PYDAQ A200 Modbus TCP Master Application Note
PYDAQ A200 Modbus TCP Slave Application Note
